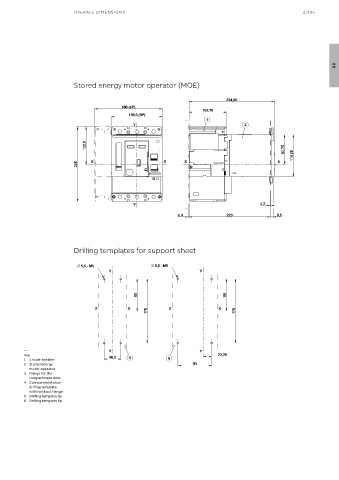

OVER ALL DIMENSIONS                                                              2/135










                                                                                                                       02


                           Stored energy motor operator (MOE)


































                           Drilling templates for support sheet




















          —
          Key
          1  Circuit-breaker
          2  Stored energy
           motor operator
          3  Flange for the
           compartment door
          4  Compartment door
           drilling template
           with/without flange
          5  Drilling template 3p
          6  Drilling template 4p
