P. 274

2/194            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

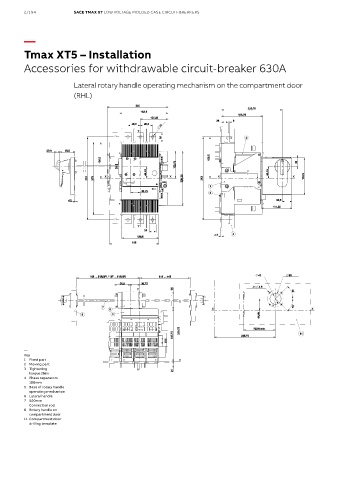

          Tmax XT5 – Installation


          Accessories for withdrawable circuit-breaker 630A


                           Lateral rotary handle operating mechanism on the compartment door
                           (RHL)






















































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Base of rotary handle
           operating mechanism
          6  Lateral handle
          7  500mm
           Connection rod
          8  Rotary handle on
           compartment door
          11  Compartment door
           drilling template
