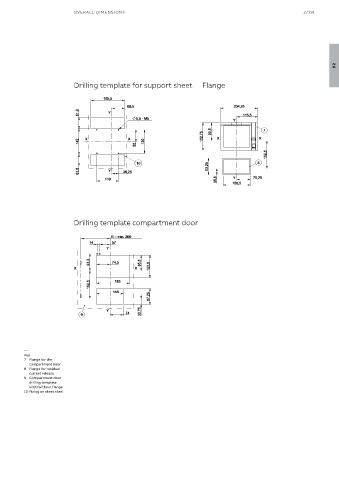

OVER ALL DIMENSIONS                                                              2/191










                                                                                                                       02


                           Drilling template for support sheet          Flange




























                           Drilling template compartment door


























          —
          Key
          7  Flange for the
           compartment door
          8  Flange for residual
           current release
          9  Compartment door
           drilling template
           with/without flange
          10  Fixing on sheet steel
