OVER ALL DIMENSIONS 2/197

02

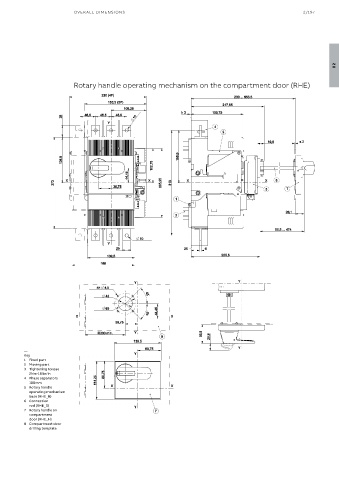

Rotary handle operating mechanism on the compartment door (RHE)

—
Key
1 Fixed part
2 Moving part
3 Tightening torque
2Nm-18lbs in
4 Phase separators
100mm
5 Rotary handle
operating mechanism
base (RHE_B)
6 Connection
rod (RHE_S)
7 Rotary handle on
compartment
door (RHE_H)
8 Compartment door
drilling template
