2/200 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

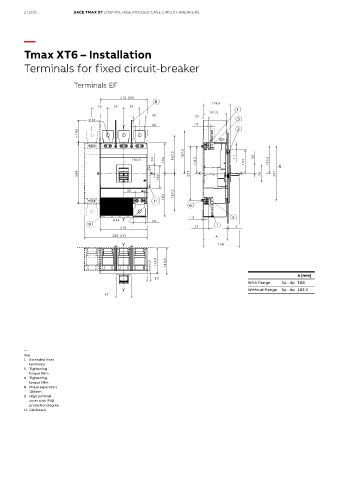

Tmax XT6 – Installation

Terminals for fixed circuit-breaker

Terminals EF

210 (III)
8 119,5
70 70 70 1
101,5
50 23
14 5
Y 40 8 2
100
~

167,5 187,5
104,5 34 134 118,5 11 103 38 120,5 X

268 X X 237 X X 76 241
100
40
192 167,5
11
6

14 Y 50 3 5
9 23 1 2
210
280 (IV) A
Y 158

114,5 119,5

A [mm]
12
With flange 3p - 4p 108
Y Without flange 3p - 4p 103.5
67

—
Key
1 Extended front
terminals
5 Tightening
torque 9Nm
6 Tightening
torque 2Nm
8 Phase separators
100mm
9 High terminal
cover with IP40
protection degree
11 Cable rack
