2/202 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

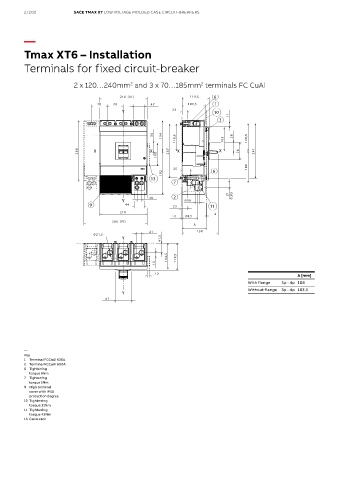

Tmax XT6 – Installation
Terminals for fixed circuit-breaker
2 x 120…240mm and 3 x 70…185mm terminals FC CuAl
2
2
210 (III) 119,5 6
70 70 47 101,5 1
Y 23 10
11
3
34 134 118,5 103 38 120,5
268 X X 237 X X 76 241
100
35 6 140
192
13
7
20 2 21 0,83
Y 19
9 44 23 11
210 2
3 68,5
280 (IV)
A
21 158
21,5
Y 41,5
114,5 119,5
15
12 A [mm]
With flange 3p - 4p 108
Without flange 3p - 4p 103.5
Y
67
—
Key
1 Terminal FCCuAl 630A
2 Terminal FCCuAl 800A
6 Tightening
torque 9Nm
7 Tightening
torque 2Nm
9 High terminal
cover with IP40
protection degree
10 Tightening
torque 31Nm
11 Tightening
torque 43Nm
13 Cable rack
