P. 286

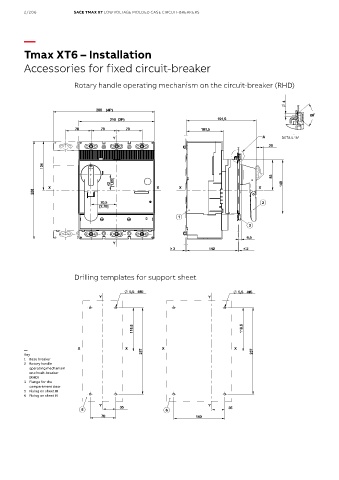

2/206            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT6 – Installation


          Accessories for fixed circuit-breaker


                           Rotary handle operating mechanism on the circuit-breaker (RHD)










                                                                                                    DETAIL "A"




























                           Drilling templates for support sheet














          —
          Key
          1  Base breaker
          2  Rotary handle
           operating mechanism
           on circuit-breaker
           (RHD)
          3  Flange for the
           compartment door
          5  Fixing on sheet III
          6  Fixing on sheet IV
