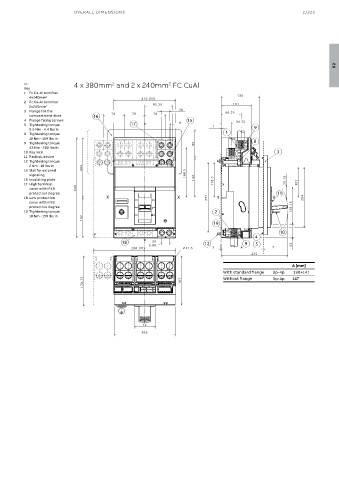

OVER ALL DIMENSIONS 2/223
02
2
2
— 4 x 380mm and 2 x 240mm FC CuAl
Key
1 Fc Cu-Al terminal
4x240mm 2
2 Fc Cu-Al terminal
2x240mm 2
3 Flange for the
compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
8 Tightening torque
18 Nm - 159 lbs in
9 Tightening torque
43 Nm - 380 lbs in
10 Key lock
11 Padlock device
12 Tightening torque
2 Nm - 18 lbs in
15 Slot for external
signaling
16 Insulating plate
17 High terminal
cover with IP40
protection degree
18 Low protection
cover with IP30
protection degree
19 Tightening torque
18 Nm - 159 lbs in
A [mm]
With standard flange 3p-4p 130÷141
Without flange 3p-4p 147
