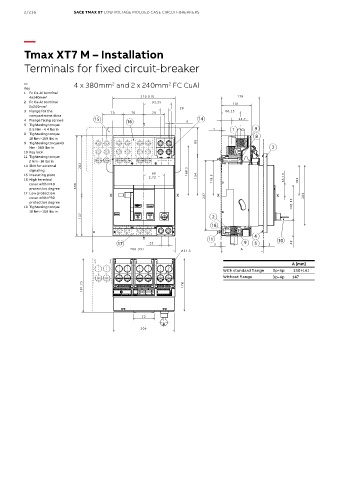

Tmax XT7 M – Installation

Terminals for fixed circuit-breaker

2
2
— 4 x 380mm and 2 x 240mm FC CuAl
Key
1 Fc Cu-Al terminal
4x240mm 2
2 Fc Cu-Al terminal
2x240mm 2
3 Flange for the
compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
8 Tightening torque
18 Nm - 159 lbs in
9 Tightening torque43
Nm - 380 lbs in
10 Key lock
11 Tightening torque
2 Nm - 18 lbs in
14 Slot for external
signaling
15 Insulating plate
16 High terminal
cover with IP40
protection degree
17 Low protection
cover with IP30
protection degree
18 Tightening torque
18 Nm - 159 lbs in

A [mm]
With standard flange 3p-4p 130÷141
Without flange 3p-4p 147
