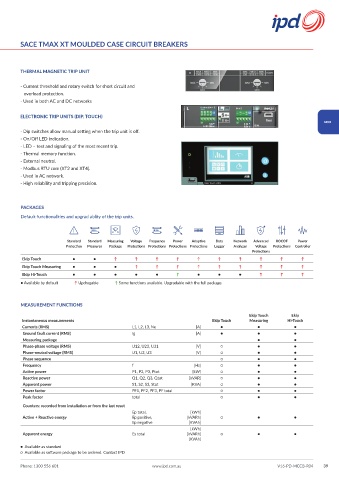

Page 47 - V16 Catalogue Final

SACE TMAX XT MOULDED CASE CIRCUIT BREAKERS

THERMAL MAGNETIC TRIP UNIT

- Current threshold and rotary switch for short circuit and
overload protection.
- Used in both AC and DC networks

ELECTRONIC TRIP UNITS (DIP, TOUCH)
MCCB
- Dip switches allow manual setting when the trip unit is off.
- On/Off LED indication.
- LED – test and signaling of the most recent trip.
- Thermal memory function.
- External neutral.
- Modbus RTU com (XT2 and XT4).
- Used in AC network.
- High reliability and tripping precision.

PACKAGES
Default functionalities and upgrad ablity of the trip units.

Standard Standard Measuring Voltage Frequency Power Adaptive Data Network Advanced ROCOF Power
Protection Measures Package Protections Protections Protections Protections Logger Analyzer Voltage Protections Controller
Protections
Ekip Touch ● ● ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑
Ekip Touch Measuring ● ● ● ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑
Ekip Hi-Touch ● ● ● ● ● ↑ ● ● ● ↑ ↑ ↑
● Available by default ↑ Updragable ↑ Some functions available. Upgradable with the full package.

MEASUREMENT FUNCTIONS
Ekip Touch Ekip
Instantaneous measurements Ekip Touch Measuring Hi-Touch
Currents (RMS) L1, L2, L3, Ne [A] ● ● ●
Ground fault current (RMS) Ig [A] ● ● ●
Measuring package ● ●
Phase-phase voltage (RMS) U12, U23, U31 [V] ● ● ●
Phase-neutral voltage (RMS) U1, U2, U3 [V] ● ● ●
Phase sequence ● ● ●
Frequency f [Hz] ● ● ●
Active power P1, P2, P3, Ptot [kW] ● ● ●
Reactive power Q1, Q2, Q3, Qtot [kVAR] ● ● ●
Apparent power S1, S2, S3, Stot [KVA] ● ● ●
Power factor PF1, PF2, PF3, PF total ● ● ●
Peak factor total ● ● ●
Counters: recorded from installation or from the last reset
Ep total, [kWh]
Active + Reactive energy Ep positive, [kVARh] ● ● ●
Ep negative [KVAh]
[kWh]
Apparent energy Es total [kVARh] ● ● ●
[KVAh]
● Available as standard
● Available as software package to be ordered. Contact IPD
