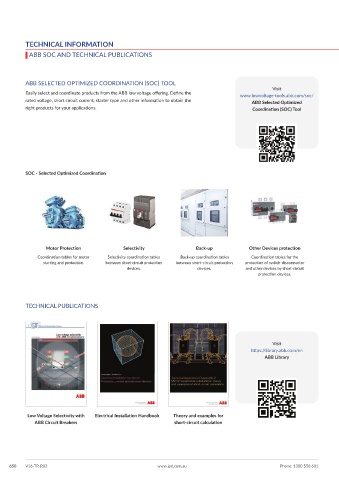

TECHNICAL INFORMATION
ABB SOC AND TECHNICAL PUBLICATIONS

ABB SELECTED OPTIMIZED COORDINATION (SOC) TOOL
Visit
Easily select and coordinate products from the ABB low voltage offering. Define the www.lowvoltage-tools.abb.com/soc/
rated voltage, short circuit current, starter type and other information to obtain the ABB Selected Optimized
right products for your applications. Coordination (SOC) Tool

SOC - Selected Optimized Coordination

Motor Protection Selectivity Back-up Other Devices protection
Coordination tables for motor Selectivity coordination tables Back-up coordination tables Coordination tables for the
starting and protection. between short-circuit protection between short-circuit protection protection of switch-disconnector
devices. devices. and other devices by short-circuit
protection devices.

TECHNICAL PUBLICATIONS

Visit
https://library.abb.com/en
ABB Library

Low Voltage Selectivity with Electrical Installation Handbook Theory and examples for
ABB Circuit Breakers short-circuit calculation
