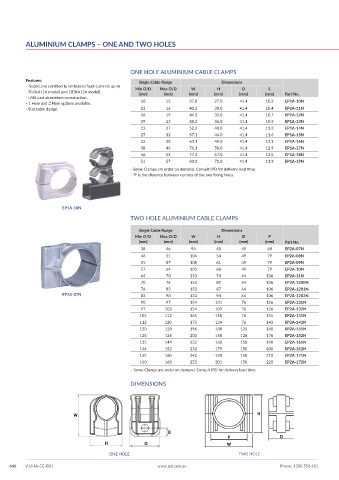

ALUMINIUM CLAMPS – ONE AND TWO HOLES

ONE HOLE ALUMINIUM CABLE CLAMPS
Features: Single Cable Range Dimensions
- Tested and certified to withstand fault currents up to Min O/D Max O/D W H D E
70.8kA (1A model) and 183kA (2A model). (mm) (mm) (mm) (mm) (mm) (mm) Part No.
- LM6 cast aluminium construction.
- 1 Hole and 2 Hole options available. 10 13 37.8 27.0 41.4 10.2 EP1A-10N
- Stackable design. 13 16 41.2 30.0 41.4 10.4 EP1A-11N
16 19 44.3 33.0 41.4 10.7 EP1A-12N
19 23 48.2 36.0 41.4 10.9 EP1A-13N
23 27 52.2 40.0 41.4 11.3 EP1A-14N
27 32 57.1 44.0 41.4 11.6 EP1A-15N
32 38 63.1 49.0 41.4 12.1 EP1A-16N
38 46 71.3 58.0 41.4 12.9 EP1A-17N
46 51 77.3 67.0 41.4 13.5 EP1A-18N
51 57 83.2 72.0 41.4 13.9 EP1A-19N
- Some Clamps are order on demand. Consult IPD for delivery lead time.
- ‘P’ is the distance between centres of the two fixing holes.

EP1A-10N
TWO HOLE ALUMINIUM CABLE CLAMPS

Single Cable Range Dimensions
Min O/D Max O/D W H D P
(mm) (mm) (mm) (mm) (mm) (mm) Part No.
38 46 94 48 49 68 EP2A-07N
46 51 104 54 49 79 EP2A-08N
51 57 105 61 49 79 EP2A-09N
57 64 105 68 49 79 EP2A-10N
64 70 133 74 64 106 EP2A-11N
70 76 133 80 64 106 EP2A-1200N
76 83 133 87 64 106 EP2A-1201N
EP2A-07N 83 90 133 94 64 106 EP2A-1202N
90 97 154 101 76 126 EP2A-131N
97 105 154 109 76 126 EP2A-132N
105 112 165 118 76 135 EP2A-141N
112 120 173 124 76 143 EP2A-142N
120 128 196 148 125 168 EP2A-151N
128 135 203 158 125 176 EP2A-152N
135 144 222 168 150 190 EP2A-161N
144 152 232 179 150 200 EP2A-162N
152 160 242 190 150 210 EP2A-171N
160 168 252 201 150 220 EP2A-172N
- Some Clamps are order on demand. Consult IPD for delivery lead time.

DIMENSIONS

ONE HOLE TWO HOLE
