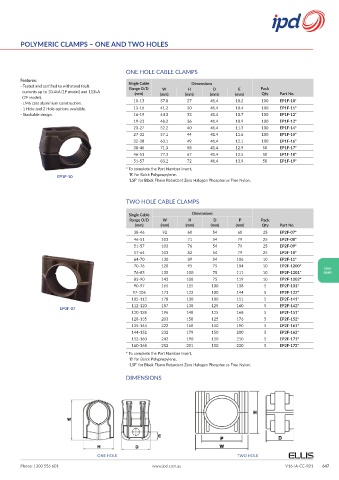

Page 655 - V16 Catalogue Final

POLYMERIC CLAMPS – ONE AND TWO HOLES

ONE HOLE CABLE CLAMPS
Features: Single Cable Dimensions
- Tested and certified to withstand fault. Range O/D W H D E Pack
currents up to 10.4kA (1F model) and 113kA (mm) (mm) (mm) (mm) (mm) Qty Part No.
(2F model).
- LM6 cast aluminium construction. 10-13 37.8 27 41.4 10.2 100 EP1F-10*
- 1 Hole and 2 Hole options available. 13-16 41.2 30 41.4 10.4 100 EP1F-11*
- Stackable design. 16-19 44.3 33 41.4 10.7 100 EP1F-12*
19-23 48.2 36 41.4 10.9 100 EP1F-13*
23-27 52.2 40 41.4 11.3 100 EP1F-14*
27-32 57.1 44 41.4 11.6 100 EP1F-15*
32-38 63.1 49 41.4 12.1 100 EP1F-16*
38-46 71.3 58 41.4 12.9 50 EP1F-17*
46-51 77.3 67 41.4 13.5 50 EP1F-18*
51-57 83.2 72 41.4 13.9 50 EP1F-19*
* To complete the Part Number insert,
EP1F-10 ‘B’ for Balck Polypropylene.
‘LSF’ for Black Flame Retardant Zero Halogen Phosphorus Free Nylon.

TWO HOLE CABLE CLAMPS

Single Cable Dimensions
Range O/D W H D P Pack
(mm) (mm) (mm) (mm) (mm) Qty Part No.
38-46 92 60 54 68 25 EP2F-07*
46-51 103 71 54 79 25 EP2F-08*
51-57 103 76 54 79 25 EP2F-09*
57-64 103 82 54 79 25 EP2F-10*
64-70 130 89 54 106 10 EP2F-11*
70-76 128 95 75 104 10 EP2F-1200* CABLE
76-83 135 100 75 111 10 EP2F-1201* CLEATS
83-90 143 108 75 119 10 EP2F-1202*
90-97 165 115 100 138 5 EP2F-131*
97-105 171 122 100 144 5 EP2F-132*
105-112 178 130 100 151 5 EP2F-141*
112-120 187 138 125 160 5 EP2F-142*
EP2F-07
120-128 196 148 125 168 5 EP2F-151*
128-135 203 158 125 176 5 EP2F-152*
135-144 222 168 150 190 5 EP2F-161*
144-152 232 179 150 200 5 EP2F-162*
152-160 242 190 150 210 5 EP2F-171*
160-168 252 201 150 220 5 EP2F-172*
* To complete the Part Number insert,
‘B’ for Balck Polypropylene.
‘LSF’ for Black Flame Retardant Zero Halogen Phosphorus Free Nylon.

DIMENSIONS

ONE HOLE TWO HOLE
