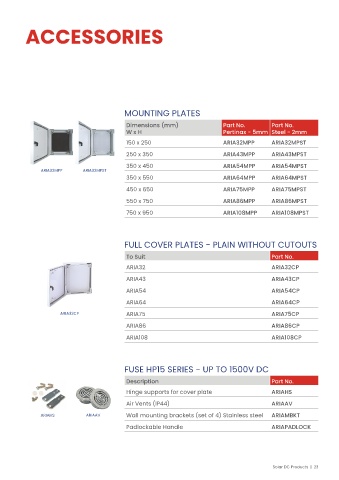

ACCESSORIES

MOUNTING PLATES

Dimensions (mm) Part No. Part No.
W x H Pertinax - 5mm Steel - 2mm
150 x 250 ARIA32MPP ARIA32MPST
250 x 350 ARIA43MPP ARIA43MPST

350 x 450 ARIA54MPP ARIA54MPST
ARIA32MPP ARIA32MPST
350 x 550 ARIA64MPP ARIA64MPST

450 x 650 ARIA75MPP ARIA75MPST

550 x 750 ARIA86MPP ARIA86MPST
750 x 950 ARIA108MPP ARIA108MPST

FULL COVER PLATES - PLAIN WITHOUT CUTOUTS

To Suit Part No.
ARIA32 ARIA32CP

ARIA43 ARIA43CP
ARIA54 ARIA54CP

ARIA64 ARIA64CP
ARIA32CP ARIA75 ARIA75CP

ARIA86 ARIA86CP

ARIA108 ARIA108CP

FUSE HP15 SERIES - UP TO 1500V DC

Description Part No.

Hinge supports for cover plate ARIAHS
Air Vents (IP44) ARIAAV

ARIAHS ARIAAV Wall mounting brackets (set of 4) Stainless steel ARIAMBKT
Padlockable Handle ARIAPADLOCK
