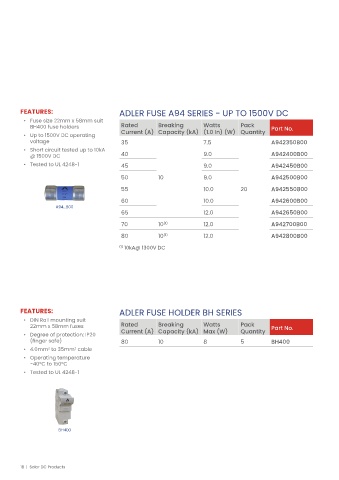

Page 18 - Solar DC Products

FEATURES: ADLER FUSE A94 SERIES - UP TO 1500V DC
• Fuse size 22mm x 58mm suit
BH400 fuse holders Rated Breaking Watts Pack Part No.
Current (A) Capacity (kA) (1.0 In) (W) Quantity
• Up to 1500V DC operating
voltage 35 7.5 A942350B00
• Short circuit tested up to 10kA
40 9.0 A942400B00
@ 1500V DC
• Tested to UL 4248-1 45 9.0 A942450B00
50 10 9.0 A942500B00

55 10.0 20 A942550800

60 10.0 A942600B00
A94...B00
65 12.0 A942650B00

70 10 (1) 12.0 A942700B00
80 10 (1) 12.0 A942800B00

(1)
10kA@ 1300V DC

FEATURES: ADLER FUSE HOLDER BH SERIES
• DIN Rail mounting suit
22mm x 58mm fuses Rated Breaking Watts Pack Part No.
Current (A) Capacity (kA) Max (W) Quantity
• Degree of protection: IP20
(finger safe) 80 10 8 5 BH400
2
2
• 4.0mm to 35mm cable
• Operating temperature
-40°C to 150°C
• Tested to UL 4248-1

BH400

18 | Solar DC Products
