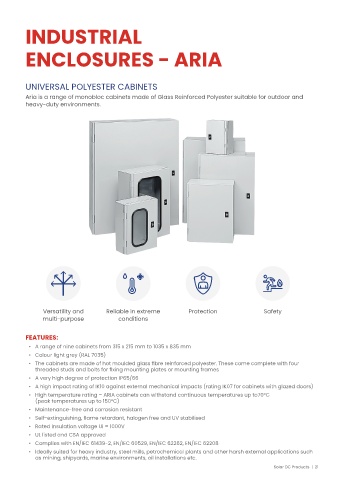

INDUSTRIAL
ENCLOSURES - ARIA
UNIVERSAL POLYESTER CABINETS
Aria is a range of monobloc cabinets made of Glass Reinforced Polyester suitable for outdoor and
heavy-duty environments.
Versatility and Reliable in extreme Protection Safety
multi-purpose conditions
FEATURES:
• A range of nine cabinets from 315 x 215 mm to 1035 x 835 mm
• Colour light grey (RAL 7035)
• The cabinets are made of hot moulded glass fibre reinforced polyester. These come complete with four
threaded studs and bolts for fixing mounting plates or mounting frames
• A very high degree of protection IP65/66
• A high impact rating of IK10 against external mechanical impacts (rating IK07 for cabinets with glazed doors)
• High temperature rating – ARIA cabinets can withstand continuous temperatures up to70°C
(peak temperatures up to 150°C)
• Maintenance-free and corrosion resistant
• Self-extinguishing, flame retardant, halogen free and UV stabilised
• Rated insulation voltage Ui = 1000V
• UL listed and CSA approved
• Complies with EN/IEC 61439-2, EN/IEC 60529, EN/IEC 62262, EN/IEC 62208
• Ideally suited for heavy industry, steel mills, petrochemical plants and other harsh external applications such
as mining, shipyards, marine environments, oil installations etc.
Solar DC Products | 21
