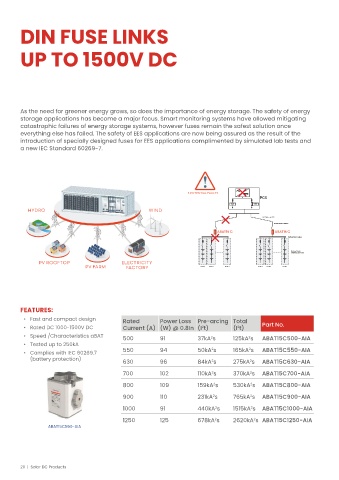

DIN FUSE LINKS

UP TO 1500V DC

As the need for greener energy grows, so does the importance of energy storage. The safety of energy
storage applications has become a major focus. Smart monitoring systems have allowed mitigating
catastrophic failures of energy storage systems, however fuses remain the safest solution once
everything else has failed. The safety of EES applications are now being assured as the result of the
introduction of specially designed fuses for EES applications complimented by simulated lab tests and
a new IEC Standard 60269-7.

3 POTENTIAL FAULTS
PCS
IMD SPD
HYDRO WIND
DC Cables to PCS
DC disconnect Switch
ABAT15 C ABAT15 C
Battery Rack cables

Battery Racks
Switches and Fuses
PV ROOFTOP ELECTRICITY
PV FARM FACTORY Rack 1 Rack 2 Rack X Rack 1 Rack 2 Rack Y

FEATURES:
• Fast and compact design
Rated Power Loss Pre-arcing Total
2
2
• Rated DC 1000-1500V DC Current (A) (W) @ 0.8In (I t) (I t) Part No.
• Speed /Characteristics aBAT
2
500 91 37kA s 125kA s ABAT15C500-AIA
2
• Tested up to 250kA
2
2
550 94 50kA s 165kA s ABAT15C550-AIA
• Complies with IEC 60269.7
(battery protection)
2
2
630 96 84kA s 275kA s ABAT15C630-AIA
2
2
700 102 110kA s 370kA s ABAT15C700-AIA
2
2
800 109 159kA s 530kA s ABAT15C800-AIA
2
2
900 110 231kA s 765kA s ABAT15C900-AIA
2
1000 91 440kA s 1515kA s ABAT15C1000-AIA
2
2
2
1250 125 678kA s 2620kA s ABAT15C1250-AIA
ABAT15C550-AIA
