3/28             ABB  MOTOR PROTECTION AND CONTROL
          —


          Technical diagrams






          —

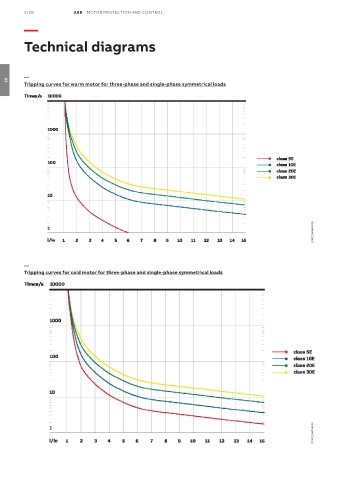

          Tripping curves for warm motor for three-phase and single-phase symmetrical loads
   03



























                                                                                                               2CDC211006V0020








          —
          Tripping curves for cold motor for three-phase and single-phase symmetrical loads
































                                                                                                               2CDC211007V0020
