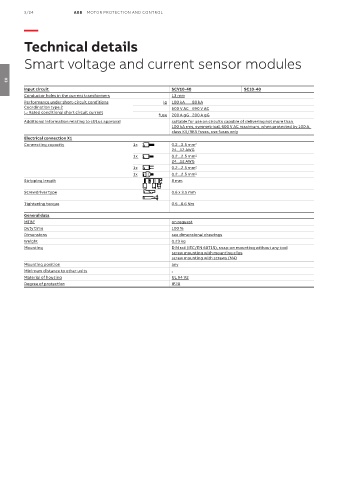

3/24 ABB MOTOR PROTECTION AND CONTROL
—

Technical details

Smart voltage and current sensor modules

03
Input circuit SCV10-40 SC10-40
Conductor holes in the current transformers 13 mm
Performance under short-circuit conditions Iq 100 kA 80 kA
Coordination type 2 500 V AC 690 V AC
I q: Rated conditional short circuit current
fuse 200 A gG 200 A gG
Additional information relating to cULus approval suitable for use on circuits capable of delivering not more than
100 kA rms, symmetrical, 600 V AC maximum, when protected by 100 A,
class K5/RK5 fuses, use fuses only
Electrical connection X1
Connecting capacity 1x 0.2...2.5 mm 2
24...12 AWG
1x 0.2...2.5 mm 2
24...12 AWG
1x 0.2...2.5 mm 2
1x 0.2...2.5 mm 2
Stripping length 8 mm

Screwdriver type 0.6 x 3.5 mm
Tightening torque 0.5...0.6 Nm

General data
MTBF on request
Duty time 100 %
Dimensions see dimensional drawings
Weight 0.23 kg
Mounting DIN rail (IEC/EN 60715), snap-on mounting without any tool
screw mounting with mounting clips
screw mounting with screws (M4)
Mounting position any
Minimum distance to other units -
Material of housing UL 94 V2
Degree of protection IP20
