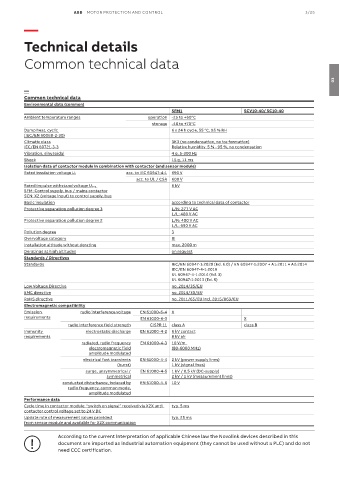

Page 101 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 3/25
—

Technical details

Common technical data

03
—
Common technical data
Environmental data (common)
SFM1 SCV10-40/ SC10-40
Ambient temperature ranges operation -25 to +60°C
storage -40 to +70°C
Damp heat, cyclic 6 x 24 h cycle, 55 °C, 95 % RH
(IEC/EN 60068-2-30)
Climatic class 3K3 (no condensation, no ice formation)
IEC/EN 60721-3-3 Relative humidity 5 % - 95 %, no condensation
Vibration, sinusoidal 4 g, 5-300 Hz
Shock 15 g, 11 ms
Isolation data of contactor module in combination with contactor (and sensor module)
Rated insulation voltage U i acc. to IEC 60947-4-1 690 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage U imp 6 kV
SFM: Control supply, bus / mains contactor
SCN: X2 (voltage input) to control supply, bus
Basic insulation according to technical data of contactor
Protective separation pollution degree 3 L/N: 277 V AC
L/L: 480 V AC
Protective separation pollution degree 2 L/N: 400 V AC
L/L: 690 V AC
Pollution degree 3
Overvoltage category III
Installation altitude without derating max. 2000 m
Deratings at high altitudes on request
Standards / Directives
Standards IEC/EN 60947-1:2020 (Ed. 6.0) / EN 60947-1:2007 + A1:2011 + A2:2014
IEC/EN 60947-4-1:2019
UL 60947-4-1:2014 (Ed. 3)
UL 60947-1:2013 (Ed. 5)
Low Voltage Directive no. 2014/35/EU
EMC directive no. 2014/30/EU
RoHS directive no. 2011/65/EU incl. 2015/863/EU
Electromagnetic compatibility
Emission radio interference voltage EN 61000-6-4 X
requirements EN 61000-6-3 X
radio interference field strength CISPR 11 class A class B
Immunity electrostatic discharge EN 61000-4-2 6 kV contact
requirements 8 kV air
radiated, radio frequency EN 61000-4-3 10 V/m
electromagnetic field (80-6000 MHz)
amplitude modulated
electrical fast transients EN 61000-4-4 2 kV (power supply lines)
(burst) 1 kV (signal lines)
surge, unsymmetrical / EN 61000-4-5 1 kV / 0.5 kV (DC-supply)
symmetrical 2 kV / 1 kV (measurement lines)
conducted disturbance, induced by EN 61000-4-6 10 V
radio frequency, common mode,
amplitude modulated
Performance data
Cycle time in contactor module: “switch on signal” received via X2X until typ. 5 ms
contactor control voltage set to 24 V DC
Update rate of measurement values provided typ. 25 ms
from sensor module and available for X2X communication

According to the current interpretation of applicable Chinese law the Novolink devices described in this
document are imported as industrial automation equipment (they cannot be used without a PLC) and do not
need CCC certification.
