ABB MOTOR PROTECTION AND CONTROL 3/27
—

Technical diagrams

— 03

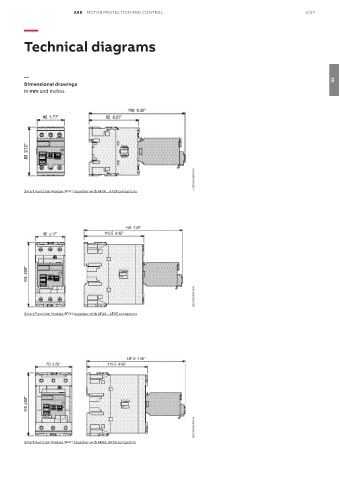

Dimensional drawings
in mm and inches

1SBC501832F0000

Smart Function Module SFM1 together with AF26...AF38 contactors

1SBC501833F0000

Smart Function Module SFM1 together with AF40...AF65 contactors

1SBC501834F0000

Smart Function Module SFM1 together with AF80, AF96 contactors
