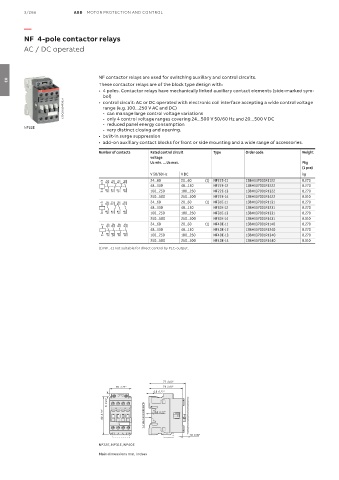

3/266 ABB MOTOR PROTECTION AND CONTROL

—

NF 4-pole contactor relays
AC / DC operated

NF contactor relays are used for switching auxiliary and control circuits.
These contactor relays are of the block type design with:
03
• 4 poles. Contactor relays have mechanically linked auxiliary contact elements (side-marked sym-
bol)
1SBC101104F0014 • control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC)
- can manage large control voltage variations
- only 4 control voltage ranges covering 24...500 V 50/60 Hz and 20...500 V DC
- reduced panel energy consumption
NF22E
- very distinct closing and opening.
• built-in surge suppression
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. ... Uc max. Pkg
(1 pce)
V 50/60 Hz V DC kg
A1 13 21 31 43 24...60 20...60 (1) NF22E-11 1SBH137001R1122 0.270
NO NC NC NO
48...130 48...130 NF22E-12 1SBH137001R1222 0.270
NO NC NC NO 100...250 100...250 NF22E-13 1SBH137001R1322 0.270
A2 14 22 32 44
250...500 250...500 NF22E-14 1SBH137001R1422 0.310
A1 13 21 33 43 24...60 20...60 (1) NF31E-11 1SBH137001R1131 0.270
NO NC NO NO
48...130 48...130 NF31E-12 1SBH137001R1231 0.270
NO NC NO NO
A2 14 22 34 44 100...250 100...250 NF31E-13 1SBH137001R1331 0.270
250...500 250...500 NF31E-14 1SBH137001R1431 0.310
A1 13 23 33 43 24...60 20...60 (1) NF40E-11 1SBH137001R1140 0.270
NO NO NO NO
48...130 48...130 NF40E-12 1SBH137001R1240 0.270
NO NO NO NO
A2 14 24 34 44 100...250 100...250 NF40E-13 1SBH137001R1340 0.270
250...500 250...500 NF40E-14 1SBH137001R1440 0.310
(1) NF..-11 not suitable for direct control by PLC-output.

77 3.03"
35 1.38"
45 1.77" 71 2.80" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC
6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20"

10 0.39"
5 0.20"
NF22E, NF31E, NF40E
Main dimensions mm, inches
