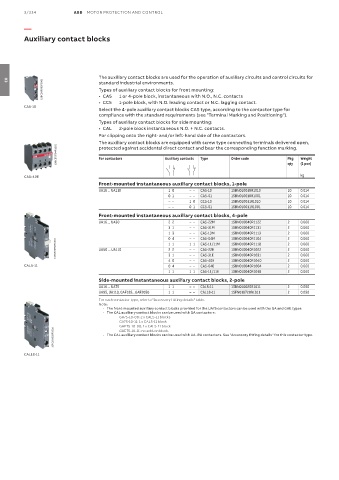

3/334 ABB MOTOR PROTECTION AND CONTROL

—

Auxiliary contact blocks

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for
1SBC580992F0301 Types of auxiliary contact blocks for front mounting:
standard industrial environments.
03
• CA5
1-pole block, with N.O. leading contact or N.C. lagging contact.
• CC5 1 or 4-pole block, instantaneous with N.O., N.C. contacts
CA5-10
Select the 4-pole auxiliary contact blocks CA5 type, according to the contactor type for
compliance with the standard requirements (see "Terminal Marking and Positioning").
Types of auxiliary contact blocks for side mounting:
• CAL 2-pole block instantaneous N.O. + N.C. contacts.
For clipping onto the right- and/or left-hand side of the contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
1SBC573794F0302 For contactors Auxiliary contacts Type Order code Pkg Weight
protected against accidental direct contact and bear the corresponding function marking.
qty
(1 pce)
CA5-40E kg
Front-mounted instantaneous auxiliary contact blocks, 1-pole
UA16 ... UA110 1 0 – – CA5-10 1SBN010010R1010 10 0.014
0 1 – – CA5-01 1SBN010010R1001 10 0.014
– – 1 0 CC5-10 1SBN010011R1010 10 0.014
– – 0 1 CC5-01 1SBN010011R1001 10 0.014
Front-mounted instantaneous auxiliary contact blocks, 4-pole
UA16 ... UA30 2 2 – – CA5-22M 1SBN010040R1122 2 0.060
3 1 – – CA5-31M 1SBN010040R1131 2 0.060
1 3 – – CA5-13M 1SBN010040R1113 2 0.060
0 4 – – CA5-04M 1SBN010040R1104 2 0.060
1SBC573752F0301 UA50 ... UA110 1 1 1 1 CA5-11/11M 1SBN010040R1118 2 2 2 0.060
2 2
– –
1SBN010040R1022
0.060
CA5-22E
3 1
CA5-31E
1SBN010040R1031
0.060
– –
4 0 – – CA5-40E 1SBN010040R1040 2 0.060
CAL5-11 0 4 – – CA5-04E 1SBN010040R1004 2 0.060
1 1 1 1 CA5-11/11E 1SBN010040R1018 2 0.060
Side-mounted instantaneous auxiliary contact blocks, 2-pole
UA16 ... UA75 1 1 – – CAL5-11 1SBN010020R1011 2 0.050
UA95, UA110, GAF185...GAF2050 1 1 – – CAL18-11 1SFN010720R1011 2 0.050
For each contactor type, refer to "Accessory fitting details" table.
Note:
- The front-mounted auxiliary contact blocks provided for the UA75 contactors can be used with the GA and GAE types
- The CAL auxiliary contact blocks can be used with GA contactors:
GA75-10-00: 2 x CAL5-11 blocks
GA75-10-11: 1 x CAL5-11 block
GAE75-10-00: 1 x CAL5-11 block
1SFC101033F0201 - The CAL auxiliary contact blocks can be used with UA..RA contactors. See "Accessory fitting details" for this contactor type.
GAE75-10-11: no add-on block.
CAL18-11
