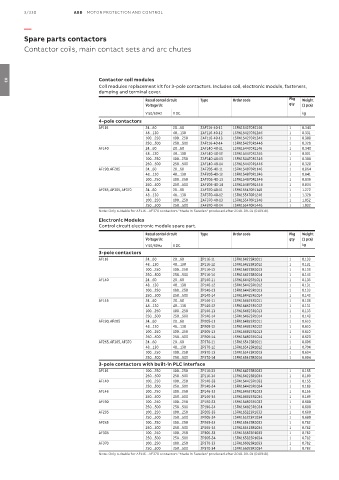

Page 406 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/330 ABB MOTOR PROTECTION AND CONTROL

—

Spare parts contactors
Contactor coils, main contact sets and arc chutes

Contactor coil modules
03
Coil modules replacement kit for 3-pole contactors. Includes coil, electronic module, fasteners,
damping and terminal cover.
Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
4-pole contactors
AF116 24…60 20…60 ZAF116-40-11 1SFN154270R1146 1 0.340
48…130 48…130 ZAF116-40-12 1SFN154270R1246 1 0.331
100…250 100…250 ZAF116-40-13 1SFN154270R1346 1 0.308
250…500 250…500 ZAF116-40-14 1SFN154270R1446 1 0.320
AF140 24…60 20…60 ZAF140-40-11 1SFN154470R1146 1 0.340
48…130 48…130 ZAF140-40-12 1SFN154470R1246 1 0.331
100…250 100…250 ZAF140-40-13 1SFN154470R1346 1 0.308
250…500 250…500 ZAF140-40-14 1SFN154470R1446 1 0.320
AF190, AF205 24…60 20…60 ZAF205-40-11 1SFN154870R1146 1 0.864
48…130 48…130 ZAF205-40-12 1SFN154870R1246 1 0.841
100…250 100…250 ZAF205-40-13 1SFN154870R1346 1 0.839
250…500 250…500 ZAF205-40-14 1SFN154870R1446 1 0.834
AF265, AF305, AF370 24…60 20…60 ZAF370-40-11 1SFN155470R1146 1 1.272
48…130 48…130 ZAF370-40-12 1SFN155470R1246 1 1.328
100…250 100…250 ZAF370-40-13 1SFN155470R1346 1 1.052
250…500 250…500 ZAF370-40-14 1SFN155470R1446 1 1.032
Note: Only suitable for AF116...AF370 contactors "Made in Sweden" produced after 2018-09-01 (010918).
Electronic Modules
Control circuit electronic module spare part.
Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
3-pole contactors
AF116 24…60 20…60 ZP116-11 1SFN164223R1011 1 0.133
48…130 48…130 ZP116-12 1SFN164223R1012 1 0.131
100…250 100…250 ZP116-13 1SFN164223R1013 1 0.133
250…500 250…500 ZP116-14 1SFN164223R1014 1 0.143
AF140 24…60 20…60 ZP140-11 1SFN164423R1011 1 0.133
48…130 48…130 ZP140-12 1SFN164423R1012 1 0.131
100…250 100…250 ZP140-13 1SFN164423R1013 1 0.133
250…500 250…500 ZP140-14 1SFN164423R1014 1 0.143
AF146 24…60 20…60 ZP146-11 1SFN164623R1011 1 0.133
48…130 48…130 ZP146-12 1SFN164623R1012 1 0.131
100…250 100…250 ZP146-13 1SFN164623R1013 1 0.133
250…500 250…500 ZP146-14 1SFN164623R1014 1 0.143
AF190, AF205 24…60 20…60 ZP205-11 1SFN164823R1011 1 0.610
48…130 48…130 ZP205-12 1SFN164823R1012 1 0.610
100…250 100…250 ZP205-13 1SFN164823R1013 1 0.610
250…500 250…500 ZP205-14 1SFN164823R1014 1 0.620
AF265, AF305, AF370 24…60 20…60 ZP370-11 1SFN165423R1011 1 0.696
48…130 48…130 ZP370-12 1SFN165423R1012 1 0.704
100…250 100…250 ZP370-13 1SFN165423R1013 1 0.694
250…500 250…500 ZP370-14 1SFN165423R1014 1 0.694
3-pole contactors with built-in PLC interface
AF116 100…250 100…250 ZP116-33 1SFN164223R1033 1 0.155
250…500 250…500 ZP116-34 1SFN164223R1034 1 0.169
AF140 100…250 100…250 ZP140-33 1SFN164423R1033 1 0.155
250…500 250…500 ZP140-34 1SFN164423R1034 1 0.169
AF146 100…250 100…250 ZP146-33 1SFN164623R1033 1 0.155
250…500 250…500 ZP146-34 1SFN164623R1034 1 0.169
AF190 100…250 100…250 ZP190-33 1SFN164823R1033 1 0.680
250…500 250…500 ZP190-34 1SFN164823R1034 1 0.680
AF205 100…250 100…250 ZP205-33 1SFN165223R1033 1 0.680
250…500 250…500 ZP205-34 1SFN165223R1034 1 0.680
AF265 100…250 100…250 ZP265-33 1SFN165423R1033 1 0.782
250…500 250…500 ZP265-34 1SFN165423R1034 1 0.782
AF305 100…250 100…250 ZP305-33 1SFN165823R1033 1 0.782
250…500 250…500 ZP305-34 1SFN165823R1034 1 0.782
AF370 100…250 100…250 ZP370-33 1SFN166023R1033 1 0.782
250…500 250…500 ZP370-34 1SFN166023R1034 1 0.782
Note: Only suitable for AF116...AF370 contactors "Made in Sweden" produced after 2018-09-01 (010918).
