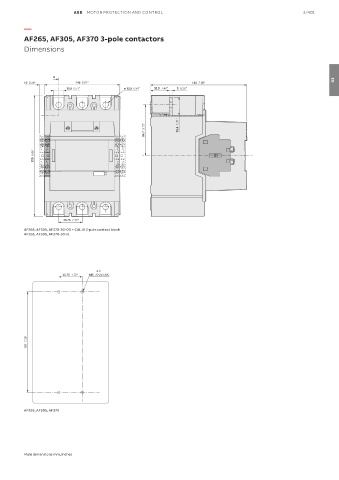

AF265, AF305, AF370 3-pole contactors
Dimensions

A
10 0.39" 140 5.51" 180 7.09" 03
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"

94.7 3.73" 33.4 1.31"

225 8.86"

43.75 1.72"
AF265, AF305, AF370-30-00 + CAL19 2-pole contact block
AF265, AF305, AF370-30-11

4 X
43.75 1.72" M5 10-24 UNC

187 7.36"

AF265, AF305, AF370

Main dimensions mm, inches
