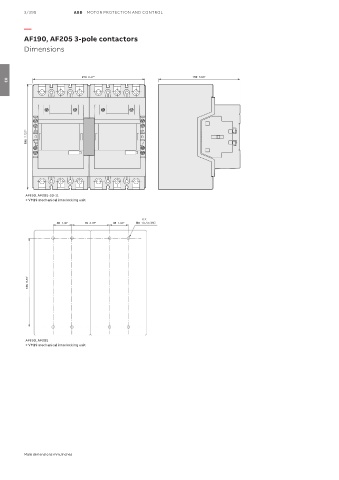

3/398            ABB  MOTOR PROTECTION AND CONTROL

          —

          AF190, AF205 3-pole contactors
          Dimensions




                              210  8.27"                             152  5.98"
   03








          196  7.727"












          AF190, AF205-30-11
          + VM19 mechanical interlocking unit



                                                   6 X
                     35  1.38"  70  2.76"  35  1.38"  M5  10-24 UNC









           165  6.50"












          AF190, AF205
          + VM19 mechanical interlocking unit






















          Main dimensions mm, inches
