3/396 ABB MOTOR PROTECTION AND CONTROL

—

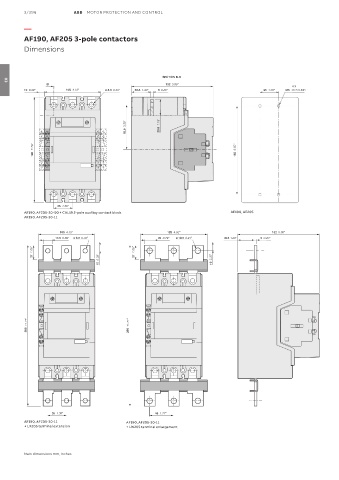

AF190, AF205 3-pole contactors
Dimensions

SECTION B-B
B 152 5.98"
03
4 X
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20" 35 1.38" M5 10-24 UNC

83.5 3.29" 29.5 1.16"

196 7.72" 165 6.50"

35 1.38"
AF190, AF205-30-00 + CAL19 2-pole auxiliay contact block AF190, AF205
AF190, AF205-30-11

105 4.13" 125 4.92" 152 5.98"
152 5.98"
20 0.79"
17.5 0.69" ø 8.5 0.33" 30.5 1.20" 5 0.20" ø 10.5 0.41" 30.5 1.20" 5 0.20"
27 1.06" 27 1.06"
10 0.39" 10 0.37"

299 11.77" 299 11.77"

35 1.38" 45 1.77"
AF190, AF205-30-11 AF190, AF205-30-11
+ LX205 terminal extension + LW205 terminal enlargement

Main dimensions mm, inches
