3/406 ABB MOTOR PROTECTION AND CONTROL

—

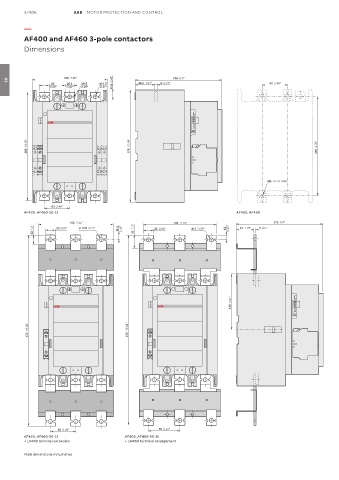

AF400 and AF460 3-pole contactors
Dimensions

186 7.32" 216 8.5"
25 22.5 ø6.5 ø10.5 11.5 0.45" 48.5 1.91" 6 0.24" 63 2.48"
03
0.98" 0.89" 0.26" 0.41"

268 10.55" 278 10.94" 248 9.76"

M5 10-24 UNC

63 2.48"
AF400, AF460-30-11 AF400, AF460
186 7.32" 181 7.13" 216 8.5"
33 1.3" 25 0.98" ø 10.5 0.41" 11.5 0.45" 33 1.3" 25 0.98" ø10 0.39" 12 0.47" 44 1.73" 5 0.2"

139 5.47"

472 18.58" 472 18.58"

63 2.48" 78 3.07"
AF400, AF460-30-11 AF400, AF460-30-11
+ LX460 terminal extension + LW460 terminal enlargement

Main dimensions mm, inches
