ABB MOTOR PROTECTION AND CONTROL 3/397

—

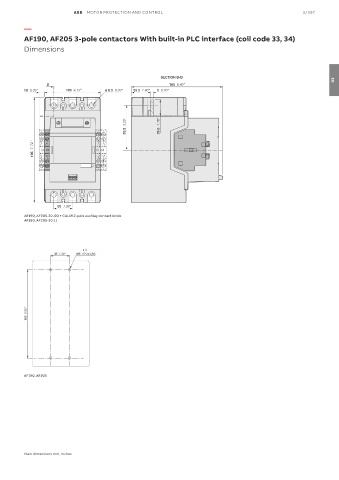

AF190, AF205 3-pole contactors With built-in PLC interface (coil code 33, 34)
Dimensions

SECTION B-B
03
B 165 6.49"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"

83.5 3.29" 29.5 1.16"

196 7.72"

35 1.38"
AF190, AF205-30-00 + CAL19 2-pole auxiliay contact block
AF190, AF205-30-11

4 X
35 1.38" M5 10-24 UNC

165 6.50"

AF190, AF205

Main dimensions mm, inches
