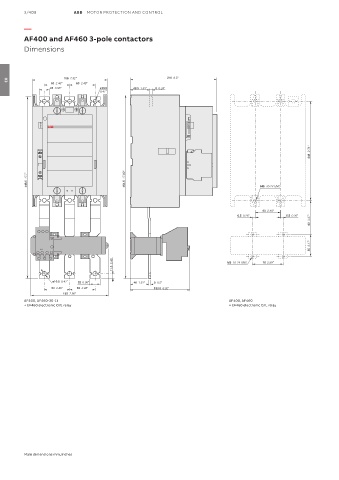

3/408 ABB MOTOR PROTECTION AND CONTROL

—

AF400 and AF460 3-pole contactors
Dimensions

186 7.32" 216 8.5"
63 2.48" 63 2.48"
03
25 0.98" ø10.5 48.5 1.91" 6 0.24"
0.41"

248 9.76"

449.5 17.7" 454.5 17.89" M5 10-24 UNC

63 2.48"
6.5 0.26" 6.5 0.26"
83 3.27"

55 2.17"

11.5 0.45" M5 10-24 UNC 76 2.99"

ø10.5 0.41" 25 0.98" 46 1.81" 5 0.2"
63 2.48" 63 2.48" 153.5 6.02"
192 7.56"
AF400, AF460-30-11 AF400, AF460
+ EF460 electronic O/L relay + EF460 electronic O/L relay

Main dimensions mm, inches
