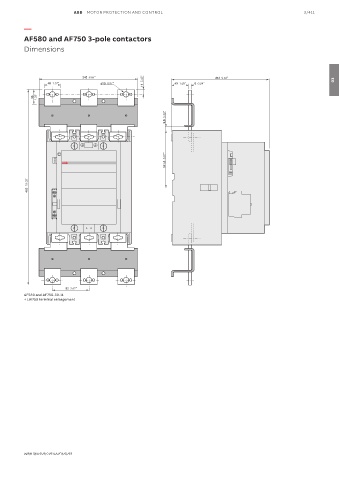

AF580 and AF750 3-pole contactors
Dimensions

245 9.65" 242 9.53"
40 1.57" ø13 0.51" 11 0.43" 43 1.69" 6 0.24" 03

1.38"
35
9.6 0.38"

141.5 5.57"

483 19.02"

92 3.62"
AF580 and AF750-30-11
+ LW750 terminal enlargement

Main dimensions mm, inches
