3/410 ABB MOTOR PROTECTION AND CONTROL

—

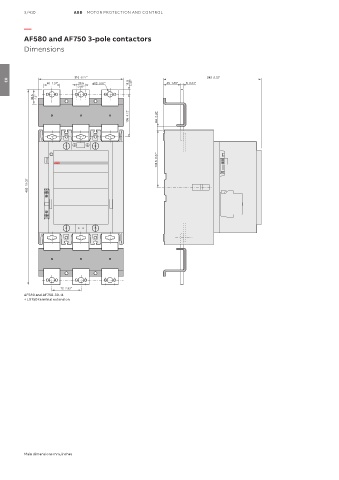

AF580 and AF750 3-pole contactors
Dimensions

210 8.27" 242 9.53"
40 1.57" 22.5 ø13 0.51" 11.5 0.45" 43 1.69" 6 0.24"
03
0.89"
35.5 1.4"

105 4.13" 9.6 0.38"

141.5 5.57"

483 19.02"

72 2.83"
AF580 and AF750-30-11
+ LX750 terminal extension

Main dimensions mm, inches
