ABB MOTOR PROTECTION AND CONTROL 3/409
—

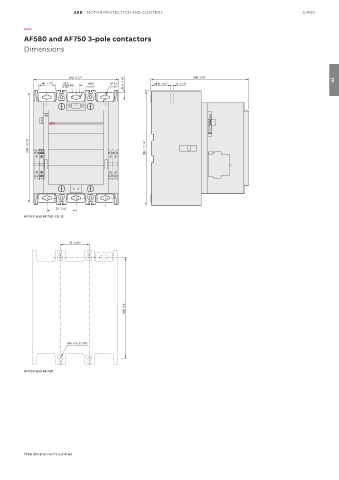

AF580 and AF750 3-pole contactors
Dimensions
210 8.27" 242 9.53"
40 1.57" 22.5 ø6.5 ø12.5 11.5 0.45" 48.5 1.91" 6 0.24" 03
0.89" 0.26" 0.49"
273 10.75" 283 11.14"
72 2.83"
AF580 and AF750-30-11
72 2.83"
249 9.8"
M6 1/4-20 UNC
AF580 and AF750
Main dimensions mm, inches
