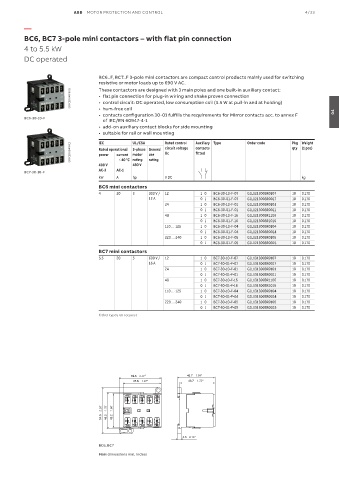

BC6, BC7 3-pole mini contactors – with flat pin connection
4 to 5.5 kW
DC operated
BC6..F, BC7..F 3-pole mini contactors are compact control products mainly used for switching
resistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211041F0011 • flat pin connection for plug-in wiring and shake proven connection
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F 04
BC6-30-10-F
of IEC/EN 60947-4-1
• add-on auxiliary contact blocks for side mounting
• suitable for rail or wall mounting Auxiliary Type Order code Pkg Weight
Rated control
UL/CSA
IEC
2CDC211024F0011 Rated operational 3-phase General circuit voltage contacts qty (1 pce)
Uc
fitted
use
motor
current
power
rating
rating
400 V θ ≤ 40 °C 480 V
AC-3 AC-1
BC7-30-10-F
kW A hp V DC kg
BC6 mini contactors
4 20 3 300 V / 12 1 0 BC6-30-10-F-07 GJL1213003R0107 10 0.170
12 A 0 1 BC6-30-01-F-07 GJL1213003R0017 10 0.170
24 1 0 BC6-30-10-F-01 GJL1213003R0101 10 0.170
0 1 BC6-30-01-F-01 GJL1213003R0011 10 0.170
48 1 0 BC6-30-10-F-16 GJL1213003R1106 10 0.170
0 1 BC6-30-01-F-16 GJL1213003R1016 10 0.170
110 … 125 1 0 BC6-30-10-F-04 GJL1213003R0104 10 0.170
0 1 BC6-30-01-F-04 GJL1213003R0014 10 0.170
220 … 240 1 0 BC6-30-10-F-05 GJL1213003R0105 10 0.170
0 1 BC6-30-01-F-05 GJL1213003R0015 10 0.170
BC7 mini contactors
5.5 20 5 600 V / 12 1 0 BC7-30-10-F-07 GJL1313003R0107 10 0.170
16 A 0 1 BC7-30-01-F-07 GJL1313003R0017 10 0.170
24 1 0 BC7-30-10-F-01 GJL1313003R0101 10 0.170
0 1 BC7-30-01-F-01 GJL1313003R0011 10 0.170
48 1 0 BC7-30-10-F-16 GJL1313003R1106 10 0.170
0 1 BC7-30-01-F-16 GJL1313003R1016 10 0.170
110 … 125 1 0 BC7-30-10-F-04 GJL1313003R0104 10 0.170
0 1 BC7-30-01-F-04 GJL1313003R0014 10 0.170
220 … 240 1 0 BC7-30-10-F-05 GJL1313003R0105 10 0.170
0 1 BC7-30-01-F-05 GJL1313003R0015 10 0.170
Other types on request
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"
2.26" 1.78" 1.66"
57.5 45.2 42.2
4.5 0.18"
BC6, BC7
Main dimensions mm, inches
