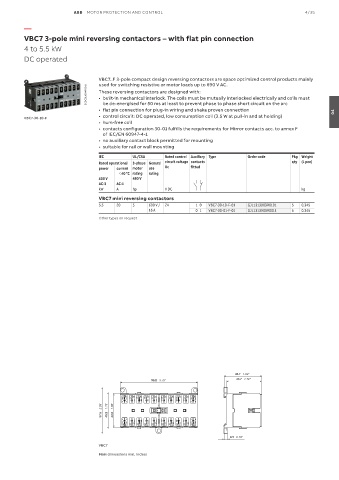

ABB MOTOR PROTECTION AND CONTROL 4/35

—
VBC7 3-pole mini reversing contactors – with flat pin connection

4 to 5.5 kW
DC operated

VBC7..F 3-pole compact design reversing contactors are space optimized control products mainly
used for switching resistive or motor loads up to 690 V AC.
2CDC211004F0011 These reversing contactors are designed with:
• built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must
be de-energised for 50 ms at least to prevent phase to phase short circuit on the arc
• flat pin connection for plug-in wiring and shake proven connection 04
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
VBC7-30-10-F
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use Uc fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC7 mini reversing contactors
5.5 20 5 600 V / 24 1 0 VBC7-30-10-F-01 GJL1313903R0101 5 0.345
16 A 0 1 VBC7-30-01-F-01 GJL1313903R0011 5 0.345
Other types on request

46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

4.5 0.18"
VBC7
Main dimensions mm, inches
