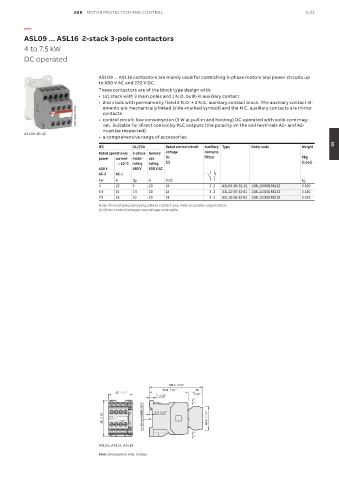

ASL09 ... ASL16 2-stack 3-pole contactors

4 to 7.5 kW
DC operated

ASL09 ... ASL16 contactors are mainly used for controlling 3-phase motors and power circuits up
to 690 V AC and 220 V DC.
These contactors are of the block type design with:
• 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact
• 2nd stack with permanently fixed 2 N.O. + 2 N.C. auxiliary contact block. The auxiliary contact el-
ements are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror
1SBC101334F0014 • control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core mag-
contacts
net. Suitable for direct control by PLC outputs (the polarity on the coil terminals A1+ and A2-
must be respected)
ASL09-30-32
• a comprehensive range of accessories.
05
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC kg
4 22 5 20 24 3 2 ASL09-30-32-81 1SBL103001R8132 0.320
5.5 24 7.5 20 24 3 2 ASL12-30-32-81 1SBL113001R8132 0.320
7.5 24 10 20 24 3 2 ASL16-30-32-81 1SBL123001R8132 0.320
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

100.2 3.94"
72.5 2.85" 10
45 1.77" 0.39"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.2 1.74"

ASL09, ASL12, ASL16
Main dimensions mm, inches
