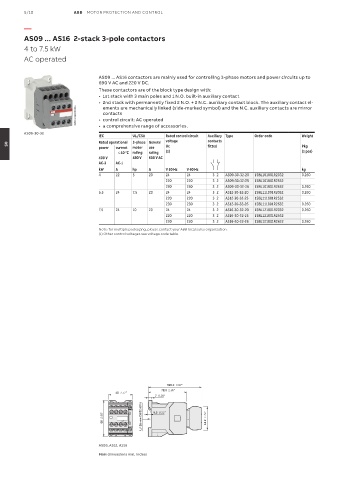

5/10 ABB MOTOR PROTECTION AND CONTROL

—
AS09 ... AS16 2-stack 3-pole contactors

4 to 7.5 kW
AC operated

AS09 ... AS16 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC.
These contactors are of the block type design with:
• 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact
• 2nd stack with permanently fixed 2 N.O. + 2 N.C. auxiliary contact block. The auxiliary contact el-
ements are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror
1SBC101332F0014 • control circuit: AC operated
contacts

AS09-30-32 • a comprehensive range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
05
θ ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50 Hz V 60 Hz kg
4 22 5 20 24 24 3 2 AS09-30-32-20 1SBL101001R2032 0.260
220 220 3 2 AS09-30-32-25 1SBL101001R2532
230 230 3 2 AS09-30-32-26 1SBL101001R2632 0.260
5.5 24 7.5 20 24 24 3 2 AS12-30-32-20 1SBL111001R2032 0.260
220 220 3 2 AS12-30-32-25 1SBL111001R2532
230 230 3 2 AS12-30-32-26 1SBL111001R2632 0.260
7.5 24 10 20 24 24 3 2 AS16-30-32-20 1SBL121001R2032 0.260
220 220 3 2 AS16-30-32-25 1SBL121001R2532
230 230 3 2 AS16-30-32-26 1SBL121001R2632 0.260
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

100.2 3.94"
72.5 2.85"
45 1.77"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.2 1.74"

AS09, AS12, AS16
Main dimensions mm, inches
