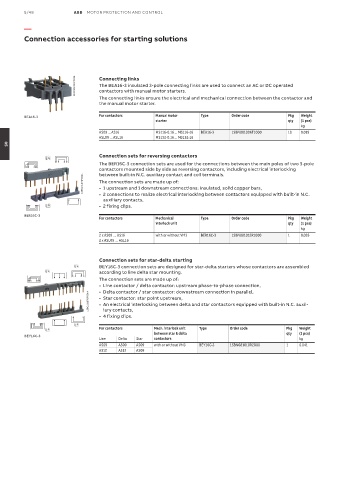

5/48 ABB MOTOR PROTECTION AND CONTROL

—

Connection accessories for starting solutions

1SBC101034F0014 Connecting links
The BEA16-3 insulated 3-pole connecting links are used to connect an AC or DC operated
contactors with manual motor starters.
The connecting links ensure the electrical and mechanical connection between the contactor and
the manual motor starter.

BEA16-3 For contactors Manual motor Type Order code Pkg Weight
starter qty (1 pce)
kg
AS09 ... AS16 MS116-0.16 ... MS116-16 BEA16-3 1SBN081006T1000 10 0.019
ASL09 ... ASL16 MS132-0.16 ... MS132-16
05
Connection sets for reversing contactors
The BER16C-3 connection sets are used for the connections between the main poles of two 3-pole
contactors mounted side by side as reversing contactors, including electrical interlocking
between built-in N.C. auxiliary contact and coil terminals.
1SBC101071F0014 The connection sets are made up of:
• 1 upstream and 1 downstream connections: insulated, solid copper bars,
• 2 connections to realize electrical interlocking between contactors equipped with built-in N.C.
auxiliary contacts,
• 2 fixing clips.

BER16C-3
For contactors Mechanical Type Order code Pkg Weight
interlock unit qty (1 pce)
kg
2 x AS09 … AS16 with or without VM3 BER16C-3 1SBN081012R1000 1 0.035
2 x ASL09 … ASL16

Connection sets for star-delta starting
BEY16C-3 connection sets are designed for star-delta starters whose contactors are assembled
according to line delta star mounting.
The connection sets are made up of:
• Line contactor / delta contactor: upstream phase-to-phase connection,
• Delta contactor / star contactor: downstream connection in parallel,
1SBC101070F0014 • Star contactor: star point upstream,
• An electrical interlocking between delta and star contactors equipped with built-in N.C. auxil-
iary contacts,
• 4 fixing clips.
For contactors Mech. interlock unit Type Order code Pkg Weight
between star & delta qty (1 pce)
BEY16C-3
Line Delta Star contactors kg
AS09 AS09 AS09 with or without VM3 BEY16C-3 1SBN081018R2000 1 0.041
AS12 AS12 AS09
