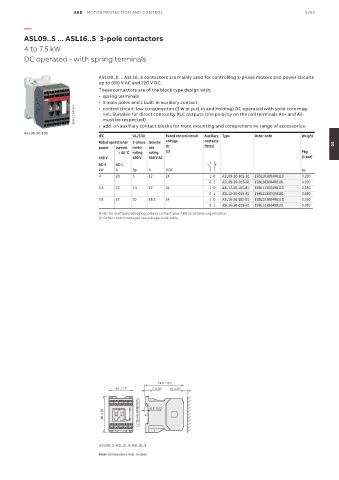

ABB MOTOR PROTECTION AND CONTROL 5/53

—
ASL09..S ... ASL16..S 3-pole contactors

4 to 7.5 kW
DC operated - with spring terminals

ASL09..S ... ASL16..S contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC.
These contactors are of the block type design with:
• spring terminals
• 3 main poles and 1 built-in auxiliary contact
1SBC101011F0014 net. Suitable for direct control by PLC outputs (the polarity on the coil terminals A1+ and A2-
• control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core mag-
must be respected)

ASL09-30-10S • add-on auxiliary contact blocks for front mounting and comprehensive range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts 05
power current motor use Uc fitted
θ ≤ 40 °C rating rating (1) Pkg
400 V 480 V 600 V AC (1 pce)
AC-3 AC-1
kW A hp A V DC kg
4 20 5 12 24 1 0 ASL09-30-10S-81 1SBL103004R8110 0.280
0 1 ASL09-30-01S-81 1SBL103004R8101 0.280
5.5 22 7.5 12 24 1 0 ASL12-30-10S-81 1SBL113004R8110 0.280
0 1 ASL12-30-01S-81 1SBL113004R8101 0.280
7.5 22 10 15.2 24 1 0 ASL16-30-10S-81 1SBL123004R8110 0.280
0 1 ASL16-30-01S-81 1SBL123004R8101 0.280
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 10 0.39" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36"

ASL09..S, ASL12..S, ASL16..S
Main dimensions mm, inches
