ABB MOTOR PROTECTION AND CONTROL 5/49

—

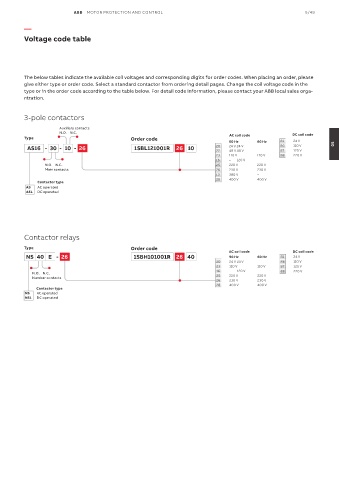

Voltage code table

The below tables indicate the available coil voltages and corresponding digits for order codes. When placing an order, please
give either type or order code. Select a standard contactor from ordering detail pages. Change the coil voltage code in the
type or in the order code according to the table below. For detail code information, please contact your ABB local sales orga-
nization.

3-pole contactors

Auxiliary contacts
N.O. N.C. AC coil code DC coil code
Type Order code
50 Hz 60 Hz 81 24 V 05
AS16 - 30 - 10 - 26 1SBL121001R 26 10 20 24 V 24 V 86 110 V
22 48 V 48 V 87 125 V
23 110 V 110 V 88 220 V
16 – 120 V
N.O. N.C. 25 220 V 220 V
Main contacts 26 230 V 230 V
13 380 V –
28 400 V 400 V
Contactor type
AS AC operated
ASL DC operated

Contactor relays

Type Order code
AC coil code DC coil code
NS 40 E - 26 1SBH101001R 26 40 50 Hz 60 Hz 81 24 V
20 24 V 24 V 86 110 V
23 110 V 110 V 87 125 V
16 – 120 V 88 220 V
N.O. N.C. 25 220 V 220 V
Number contacts
26 230 V 230 V
28 400 V 400 V
Contactor type
NS AC operated
NSL DC operated
