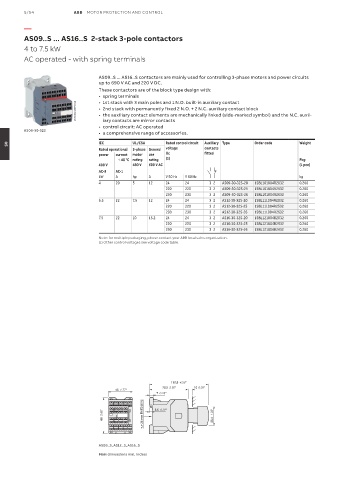

5/54 ABB MOTOR PROTECTION AND CONTROL

—
AS09..S ... AS16..S 2-stack 3-pole contactors

4 to 7.5 kW
AC operated - with spring terminals

AS09..S ... AS16..S contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC.
These contactors are of the block type design with:
• spring terminals
• 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact
1SBC101333F0014 • 2nd stack with permanently fixed 2 N.O. + 2 N.C. auxiliary contact block
• the auxiliary contact elements are mechanically linked (side-marked symbol) and the N.C. auxil-
iary contacts are mirror contacts
• control circuit: AC operated
AS09-30-32S
• a comprehensive range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
05
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted
θ ≤ 40 °C rating rating (1) Pkg
400 V 480 V 600 V AC (1 pce)
AC-3 AC-1
kW A hp A V 50 Hz V 60 Hz kg
4 20 5 12 24 24 3 2 AS09-30-32S-20 1SBL101004R2032 0.260
220 220 3 2 AS09-30-32S-25 1SBL101004R2532 0.260
230 230 3 2 AS09-30-32S-26 1SBL101004R2632 0.260
5.5 22 7.5 12 24 24 3 2 AS12-30-32S-20 1SBL111004R2032 0.260
220 220 3 2 AS12-30-32S-25 1SBL111004R2532 0.260
230 230 3 2 AS12-30-32S-26 1SBL111004R2632 0.260
7.5 22 10 15.2 24 24 3 2 AS16-30-32S-20 1SBL121004R2032 0.260
220 220 3 2 AS16-30-32S-25 1SBL121004R2532 0.260
230 230 3 2 AS16-30-32S-26 1SBL121004R2632 0.260
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

110.8 4.36"
72.5 2.85" 10 0.39"
45 1.77"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39"

AS09..S, AS12..S, AS16..S
Main dimensions mm, inches
