Do you think about safety?

ABB does - find
more information
on the ABB Jokab
Safety offer, de-
tails about the
products and
their applications
online.

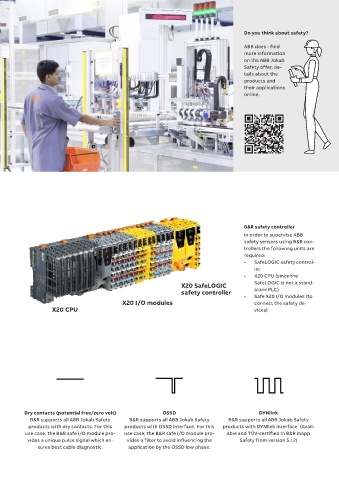

B&R safety controller
In order to supervise ABB
safety sensors using B&R con-
trollers the following units are
required:
• SafeLOGIC safety control-
ler
• X20 CPU (since the
X20 SafeLOGIC SafeLOGIC is not a stand-
alone PLC)
safety controller
• Safe X20 I/O modules (to
X20 I/O modules connect the safety de-
X20 CPU vices)

Dry contacts (potential free/zero volt) OSSD DYNlink
B&R supports all ABB Jokab Safety B&R supports all ABB Jokab Safety B&R supports all ABB Jokab Safety
products with dry contacts. For this products with OSSD interface. For this products with DYNlink interface. (Avail-
use case, the B&R safe I/O module pro- use case, the B&R safe I/O module pro- able and TÜV-certified in B&R mapp
vides a unique pulse signal which en- vides a filter to avoid influencing the Safety from version 5.12)
sures best cable diagnostic. application by the OSSD low phase.
