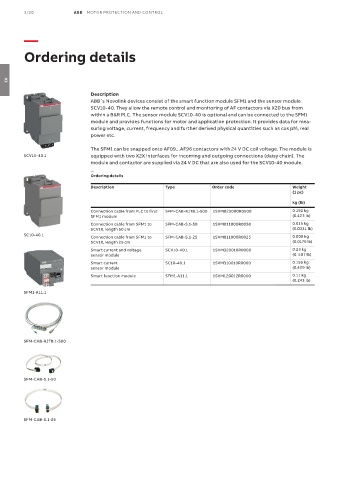

3/20 ABB MOTOR PROTECTION AND CONTROL

—

Ordering details

03
Description
ABB`s Novolink devices consist of the smart function module SFM1 and the sensor module
SCV10-40. They allow the remote control and monitoring of AF contactors via X20 bus from
within a B&R PLC. The sensor module SCV10-40 is optional and can be connected to the SFM1
module and provides functions for motor and application protection. It provides data for mea-
suring voltage, current, frequency and further derived physical quantities such as cos phi, real
power etc.

The SFM1 can be snapped onto AF09...AF96 contactors with 24 V DC coil voltage. The module is
SCV10-40.1 equipped with two X2X interfaces for incoming and outgoing connections (daisy chain). The
module and contactor are supplied via 24 V DC that are also used for the SCV10-40 module.
—
Ordering details
Description Type Order code Weight
(1 pc)
kg (lb)
Connection cable from PLC to first SFM-CAB-RJTB.1-500 1SVM823000R0500 0.192 kg
SFM1 module (0.423 lb)
Connection cable from SFM1 to SFM-CAB-S.1-50 1SVM811000R0050 0.015 kg
SCV10, length 50 cm (0.0331 lb)
SC10-40.1
Connection cable from SFM1 to SFM-CAB-S.1-25 1SVM811000R0025 0.008 kg
SCV10, length 25 cm (0.0176 lb)
Smart current and voltage SCV10-40.1 1SVM320010R0000 0.23 kg
sensor module (0. 507 lb)
Smart current SC10-40.1 1SVM310010R0000 0.195 kg
sensor module (0.429 lb)
Smart function module SFM1-A11.1 1SVM120012R0000 0.11 kg
(0.243 lb)

SFM1-A11.1

SFM-CAB-RJTB.1-500

SFM-CAB-S.1-50

SFM-CAB-S.1-25
