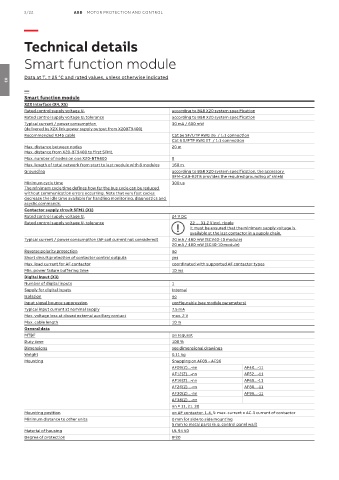

3/22             ABB  MOTOR PROTECTION AND CONTROL
          —


          Technical details


          Smart function module


          Data at T a = 25 °C and rated values, unless otherwise indicated
   03
          —
          Smart function module
          X2X Interface (X4, X5)
          Rated control supply voltage U s                   according to B&R X20 system specification
          Rated control supply voltage U s tolerance         according to B&R X20 system specification
          Typical current / power consumption                30 mA / 600 mW
          (delivered by X2X link power supply output from X20BT9400)
          Recommended RJ45 cable                             Cat 5e SF/UTP AWG 26  / 1:1 connection
                                                             Cat 6 S/FTP AWG 27  / 1:1 connection
          Max. distance between nodes                        20 m
          Max. distance from X20-BT9400 to first SFM1
          Max. number of nodes on one X20-BT9400             8
          Max. length of total network from start to last module with 8 modules  160 m
          Grounding                                          according to B&R X20 system specification, the accessory
                                                             SFM-CAB-RJTB provides the required grounding of shield
          Minimum cycle time                                 300 us
          The minimum cycle time defines how far the bus cycle can be reduced
          without communication errors occurring. Note that very fast cycles
          decrease the idle time available for handling monitoring, diagnostics and
          acyclic commands.
          Contactor supply circuit SFM1 (X1)
                                                             24 V DC
          Rated control supply voltage U s
          Rated control supply voltage U s tolerance                22 … 31.2 V incl. ripple
                                                                    It must be ensured that the minimum supply voltage is
                                                                    available at the last contactor in a supply chain.
          Typical current / power consumption (AF coil current not considered)  20 mA / 480 mW (SCV40-10 module)
                                                             20 mA / 480 mW (SC40-10 module)
          Reverse polarity protection                        no
          Short circuit protection of contactor control outputs  yes
          Max. load current for AF contactor                 coordinated with supported AF contactor types
          Min. power failure buffering time                  10 ms
          Digital Input (X3)
          Number of digital inputs                           1
          Supply for digital inputs                          internal
          Isolation                                          no
          Input signal bounce suppression                    configurable (see module parameters)
          Typical input current at nominal supply            7.5 mA
          Max. voltage loss at closed external auxiliary contact  max. 2 V
          Max. cable length                                  10 m
          General data
          MTBF                                               on request
          Duty time                                          100 %
          Dimensions                                         see dimensional drawings
          Weight                                             0.11 kg
          Mounting                                           Snapping on AF09 – AF96
                                                             AF09(Z)...-nn             AF40...-11
                                                             AF12(Z)...-nn             AF52...-11
                                                             AF16(Z)...-nn             AF65...-11
                                                             AF26(Z)...-nn             AF80...-11
                                                             AF30(Z)...-nn             AF96...-11
                                                             AF38(Z)...-nn
                                                             nn = 11, 21, 30
          Mounting position                                  on AF contactor. 1-4, 5: max. current = AC-3 current of contactor
          Minimum distance to other units                    0 mm for side to side mounting
                                                             5 mm to metal parts (e.g. control panel wall)
          Material of housing                                UL 94 V0
          Degree of protection                               IP20
