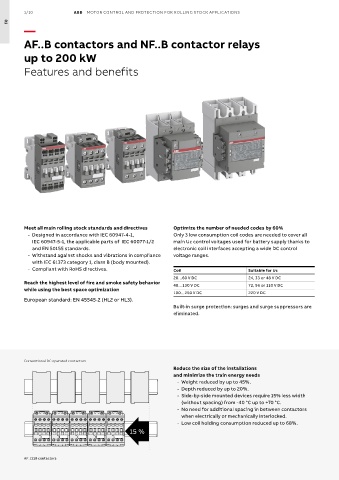

1/10 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
01
AF..B contactors and NF..B contactor relays

up to 200 kW

Features and benefits

Meet all main rolling stock standards and directives Optimize the number of needed codes by 60%
- Designed in accordance with IEC 60947-4-1, Only 3 low consumption coil codes are needed to cover all
IEC 60947-5-1, the applicable parts of IEC 60077-1/2 main Uc control voltages used for battery supply thanks to
and EN 50155 standards. electronic coil interfaces accepting a wide DC control
- Withstand against shocks and vibrations in compliance voltage ranges.
with IEC 61373 category 1, class B (body mounted).
- Compliant with RoHS directives. Coil Suitable for Uc
20…60 V DC 24, 33 or 48 V DC
Reach the highest level of fire and smoke safety behavior 48…130 V DC 72, 96 or 110 V DC
while using the best space optimization
100…250 V DC 220 V DC
European standard: EN 45545-2 (HL2 or HL3).
Built-in surge protection: surges and surge suppressors are
eliminated.

Conventional DC operated contactors
Reduce the size of the installations
and minimize the train energy needs
- Weight reduced by up to 45%.
- Depth reduced by up to 20%.
- Side-by-side mounted devices require 15% less width
(without spacing) from -40 °C up to +70 °C.
- No need for additional spacing in between contactors
when electrically or mechanically interlocked.
- Low coil holding consumption reduced up to 68%.
1SBC100598S0201 - Rev. A
15 %

AF..(Z)B contactors
