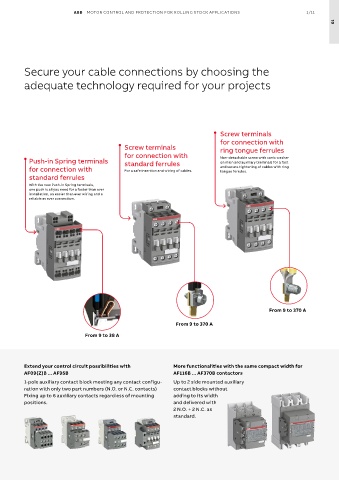

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 1/11
01
Secure your cable connections by choosing the
adequate technology required for your projects
Screw terminals
for connection with
Screw terminals ring tongue ferrules
for connection with Non-detachable screw with conic washer
Push-in Spring terminals standard ferrules on main and auxiliary terminals for a fast
for connection with For a safe insertion and wiring of cables. and secure tightening of cables with ring
tongue ferrules.
standard ferrules
With the new Push-in Spring terminals,
one push is all you need for a faster than ever
installation, an easier than ever wiring and a
reliable as ever connection.
From 9 to 370 A
From 9 to 370 A
From 9 to 38 A
Extend your control circuit possibilities with More functionalities with the same compact width for
AF09(Z)B ... AF95B AF116B ... AF370B contactors
1-pole auxiliary contact block meeting any contact configu- Up to 2 side mounted auxiliary
ration with only two part numbers (N.O. or N.C. contacts) contact blocks without
Fixing up to 6 auxiliary contacts regardless of mounting adding to its width
positions. and delivered with
2 N.O. + 2 N.C. as
standard.
