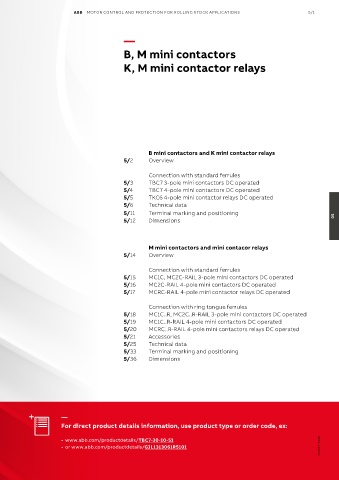

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 5/1

—

B, M mini contactors

K, M mini contactor relays

B mini contactors and K mini contactor relays
5/2 Overview

Connection with standard ferrules
5/3 TBC7 3-pole mini contactors DC operated
5/4 TBC7 4-pole mini contactors DC operated
5/5 TKC6 4-pole mini contactor relays DC operated
5/6 Technical data
5/11 Terminal marking and positioning 05
5/12 Dimensions

M mini contactors and mini contacor relays
5/14 Overview

Connection with standard ferrules
5/15 MC1C, MC2C-RAIL 3-pole mini contactors DC operated
5/16 MC2C-RAIL 4-pole mini contactors DC operated
5/17 MCRC-RAIL 4-pole mini contactor relays DC operated

Connection with ring tongue ferrules
5/18 MC1C..R, MC2C..R-RAIL 3-pole mini contactors DC operated
5/19 MC1C..R-RAIL 4-pole mini contactors DC operated
5/20 MCRC..R-RAIL 4-pole mini contactors relays DC operated
5/21 Accessories
5/25 Technical data
5/33 Terminal marking and positioning
5/36 Dimensions

—
For direct product details information, use product type or order code, ex:

• www.abb.com/productdetails/TBC7-30-10-51
• or www.abb.com/productdetails/GJL1313061R5101 Chap05-Principal
