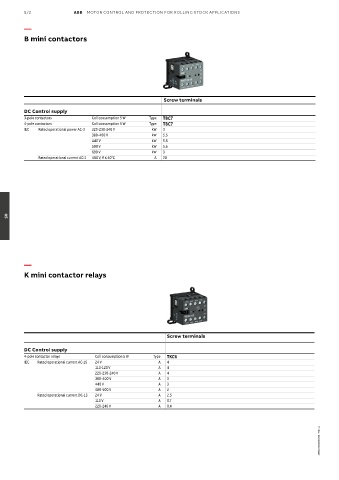

P. 318
5/2 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS
—
B mini contactors
Screw terminals
DC Control supply
3-pole contactors Coil consumption 5 W Type TBC7
4-pole contactors Coil consumption 5 W Type TBC7
IEC Rated operational power AC-3 220-230-240 V kW 3
380-400 V kW 5.5
440 V kW 5.5
500 V kW 5.5
690 V kW 3
Rated operational current AC-1 400 V, θ ≤ 40°C A 20
05
—
K mini contactor relays
Screw terminals
DC Control supply
4-pole contactor relays Coil consumption 5 W Type TKC6
IEC Rated operational current AC-15 24 V A 4
110-120 V A 4
220-230-240 V A 4
380-400 V A 3
440 V A 3
480-500 V A 2
Rated operational current DC-13 24 V A 2.5
110 V A 0.7
220-240 V A 0.4
1SBC100548S0201 - Rev. A
