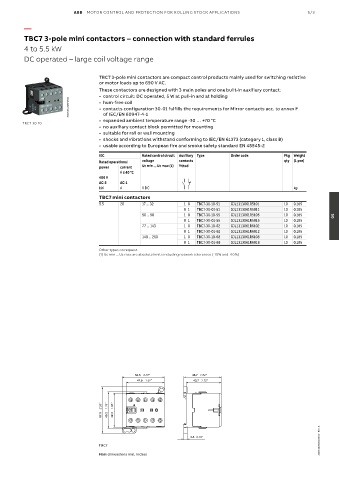

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 5/3

—
TBC7 3-pole mini contactors – connection with standard ferrules

4 to 5.5 kW
DC operated – large coil voltage range

TBC7 3-pole mini contactors are compact control products mainly used for switching resistive
or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
• control circuit: DC operated, 5 W at pull-in and at holding
2CDC211015F0011 • hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
TBC7-30-10 • expanded ambient temperature range -30 … +70 °C
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting
• shocks and vibrations withstand conforming to IEC/EN 61373 (category 1, class B)
• usable according to European fire and smoke safety standard EN 45545-2

IEC Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational voltage contacts qty (1 pce)
power current Uc min ... Uc max (1) fitted
θ ≤ 40 °C
400 V
AC-3 AC-1
kW A V DC kg
TBC7 mini contactors
5.5 20 17 ... 32 1 0 TBC7-30-10-51 GJL1313061R5101 10 0.185
0 1 TBC7-30-01-51 GJL1313061R5011 10 0.185
50 ... 90 1 0 TBC7-30-10-55 GJL1313061R5105 10 0.185 05
0 1 TBC7-30-01-55 GJL1313061R5015 10 0.185
77 ... 143 1 0 TBC7-30-10-62 GJL1313061R6102 10 0.185
0 1 TBC7-30-01-62 GJL1313061R6012 10 0.185
140 ... 260 1 0 TBC7-30-10-68 GJL1313061R6108 10 0.185
0 1 TBC7-30-01-68 GJL1313061R6018 10 0.185
Other types on request
(1) Uc min ... Uc max are absolute limits including network tolerances (-15% and +10%)

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

2CDC102020C0201 - Rev. A
4.5 0.18"
TBC7
Main dimensions mm, inches
