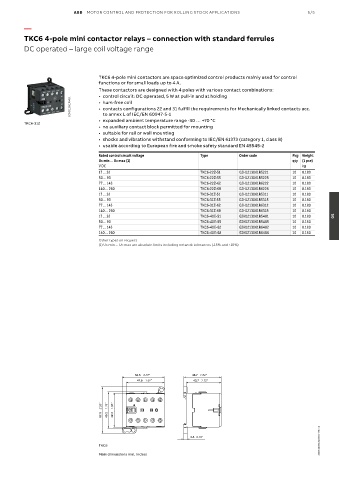

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 5/5

—
TKC6 4-pole mini contactor relays – connection with standard ferrules

DC operated – large coil voltage range

TKC6 4-pole mini contactors are space optimized control products mainly used for control
functions or for small loads up to 4 A.
These contactors are designed with 4 poles with various contact combinations:
• control circuit: DC operated, 5 W at pull-in and at holding
2CDC211021F0011 • hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
to annex L of IEC/EN 60947-5-1

TKC6-31Z • expanded ambient temperature range -30 … +70 °C
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting
• shocks and vibrations withstand conforming to IEC/EN 61373 (category 1, class B)
• usable according to European fire and smoke safety standard EN 45545-2

Rated control circuit voltage Type Order code Pkg Weight
Uc min ... Uc max (1) qty (1 pce)
V DC kg
17 ... 32 TKC6-22Z-51 GJH1213061R5221 10 0.180
50 ... 90 TKC6-22Z-55 GJH1213061R5225 10 0.180
77 ... 143 TKC6-22Z-62 GJH1213061R6222 10 0.180
140 ... 260 TKC6-22Z-68 GJH1213061R6228 10 0.180
17 ... 32 TKC6-31Z-51 GJH1213061R5311 10 0.180
50 ... 90 TKC6-31Z-55 GJH1213061R5315 10 0.180
77 ... 143 TKC6-31Z-62 GJH1213061R6312 10 0.180
140 ... 260 TKC6-31Z-68 GJH1213061R6318 10 0.180
17 ... 32 TKC6-40E-51 GJH1213061R5401 10 0.180 05
50 ... 90 TKC6-40E-55 GJH1213061R5405 10 0.180
77 ... 143 TKC6-40E-62 GJH1213061R6402 10 0.180
140 ... 260 TKC6-40E-68 GJH1213061R6408 10 0.180
Other types on request
(1) Uc min ... Uc max are absolute limits including network tolerances (-15% and +10%)

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

2CDC102014C0201 - Rev. A
4.5 0.18"
TKC6
Main dimensions mm, inches
